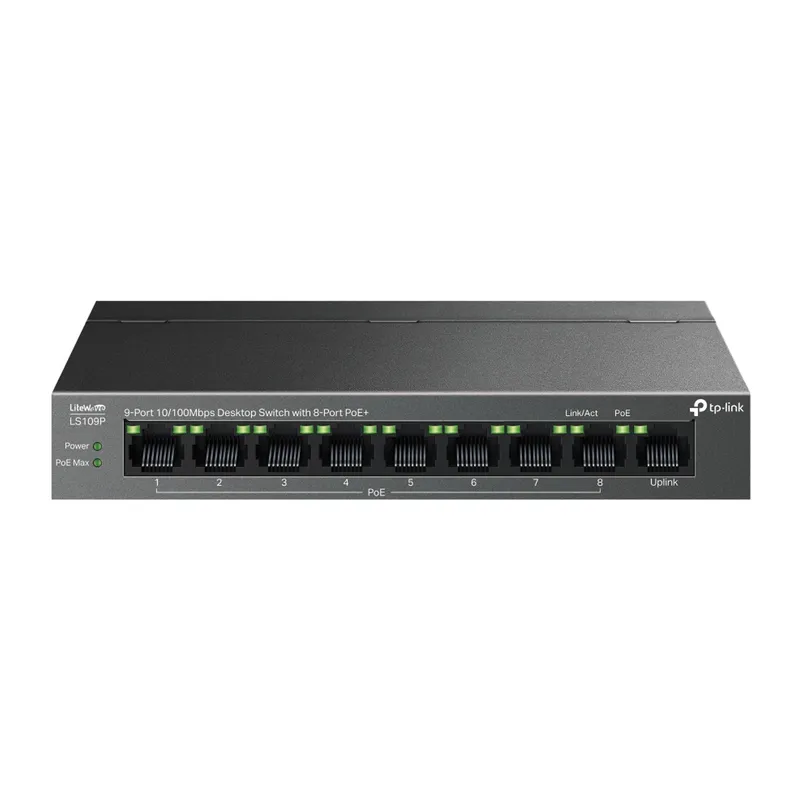

TP-LINK LS109P, Green Tech, 8 Port MegaBit, POE 63W, 1 Port Uplink, Long Range 250Mt, Yönetilemez, Metal Kasalı Switch

RJ45 Port : 9 Adet RJ45 Veri Hızı : 100Mbps PoE Port : 8 Adet SFP Port : Yok Rack Kabin : Uyumlu Değil Yönetilebilir : Yönetilemez PoE Gücü Watt : 63W Uplink Port : ​1 Port Materyal : ​Metal DONANIM ÖZELLİKLERİ Arabirim • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports) • AUTO Negotiation • AUTO MDI/MDIX Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) Fan Sayısı Fanless Kurulum • Desktop • Wall Mounting Güç Kaynağı External Power Adapter (Output: 53.5VDC / 1.31A) PoE Portları (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • Power Supply: 63 W LED Göstergesi • Power • Link/Act • PoE Status • PoE MAX Boyutlar (W X D X H) 6.7×3.9×1.1 in (171×98×27 mm) Maks. Güç Tüketimi • 3.67 W (220 V/50 Hz no PD connected) • 73.24 W (220 V/50 Hz with 63 W PD connected) Max Heat Dissipation • 12.48 BTU/h (220 V/50 Hz no PD connected) • 249 BTU/h (220 V/50 Hz with 63 W PD connected) PERFORMANS Anahtarlama Kapasitesi 1.8 Gbps Paket Yönlendirme Hızı 1.3392 Mpps MAC Adres Tablosu 2K Jumbo Frame 1.5 KB YAZILIM ÖZELLİKLERİ Gelişmiş Özellikler • Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology Transfer Metodu Store and Forward DİĞERLERİ Sertifika CE, FCC, RoHS Paket İçeriği • LS109P • Power Adapter • Installation Guide • Rubber Feet Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
